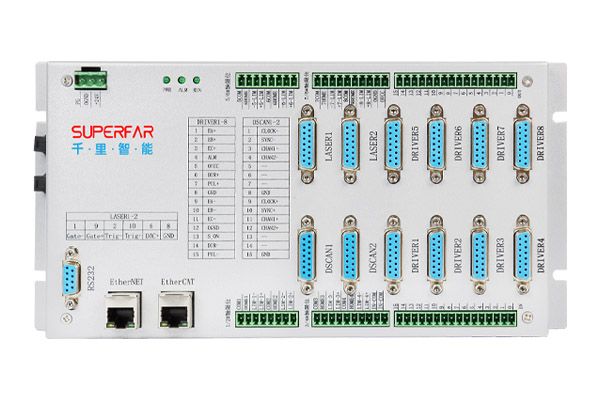

QLS-822 8 Axis Dual Galvo Platform Linkage Control Card

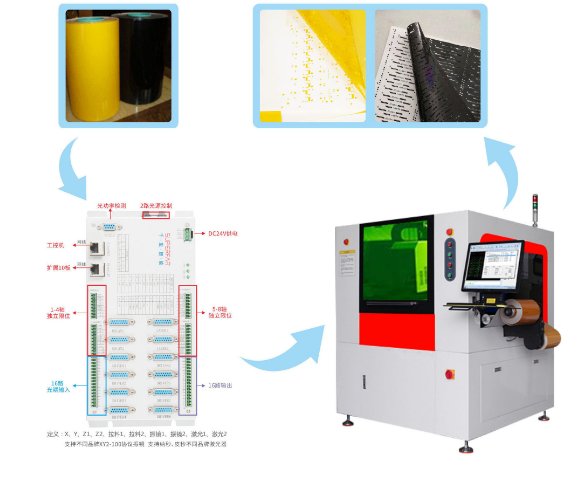

QLS-822 8 Axis Dual Galvo Plaform Linkage Control Card supports eight axis plus a Dual galvanometer and Dual laser control. Its dual galvanometers can operate synchronously or asynchronously and can control stepper/servo/linear motors. With an improved S-curve acceleration/deceleration algorithm and look-ahead control, the machine achieves faster and smoother speed transitions, enabling high-precision, high-efficiency, and large-format processing. It is currently widely used in industries such as PCB and FPCB, including processes like FPC cover film roll-to-sheet, FPC cover film roll-to-roll, FPC outline cutting, FPC flexible boards, cover films, PET films, PI films, PP films, adhesive films, copper foil, explosion-proof films, electromagnetic films, and various other thin-film and circuit board auxiliary materials. It also supports FPC outline cutting functionality.
Application:
Category | Description |
Control Features | - Achieves 8 axis synchronization between platform movement and galvanometer scanning - Integrates motor axis motion dual laser control and dual galvanometer control into a unified system, Simplifies equipment integration - Reduces costs while enhancing performance. |
Computational Performance | - Equipped with a high-performance digital processing unit (QLS-822 platforms) - Ultra-short servo cycles for high-speed precision control. |
Communication Capabilities | - EtherNET 1000M Ethernet communication - Independent operating system |
EtherCAT Interface | - Simplified wiring, exceptional scalability, anti-interference performance |
Data Storage | - Large-capacity memory architecture supporting high-speed data throughput applications |
Core Features | - Supports 8 axis and dual galvanometer and dual laser - Dual galvanometer enables synchronous or asynchronous processing - Compatible with stepper/servo/linear motors - Enhanced S-curve acceleration/deceleration and look-ahead control for machine stability- Vector and bitmap processing - XY2-10 protocol and 16-bit resolution control signals - 5V TTL Gate/Trigger laser signal synchronization - Fully independent intellectual property, perfect Galvo control solutions. |
| Application | FPC/PCB cutting, Mobile camera module cutting,Fingerprint recognition module cutting,Memory card & TF card cutting,ITO film etching,Large-format marking,FPC cover film roll-to-piece and roll-to-roll cutting |
QLC-420 High-Precision 4 axis motion Control Card, enables single or dual platform cutting and can control stepper, servo, and linear motors. Enhanced S-curve acceleration/deceleration algorithms with look-ahead control ensure faster and more stable ma
QLS-422 integrates motion control of the integrated platform and Dual galvanometer scanning control into a single system, enabling 4-axis linkage. Equipped with substantial memory, it can process large datasets in a single pass
QLS-821 8 Axis Galvo Platform Linkage Control Card, supports eight axis with galvanometer and laser control. it is compatible with stepper/servo/linear motors. Delivering high precision, high efficiency, and large-format processing
QLS-221 Network Laser Marking Control Card supports the XYZ-100 data transfer protocol. The cards communicate with the galvanometer scanning system using 16-bit resolution control signals,
