QLCut Tube metal tube pipe laser cutting control system
Application

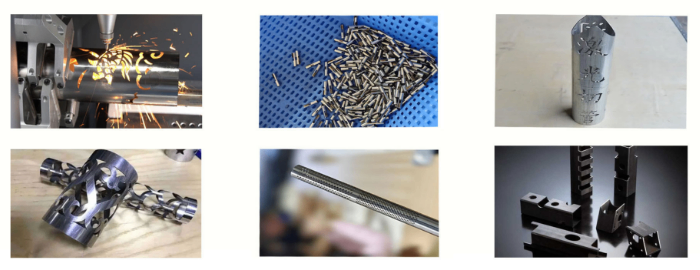

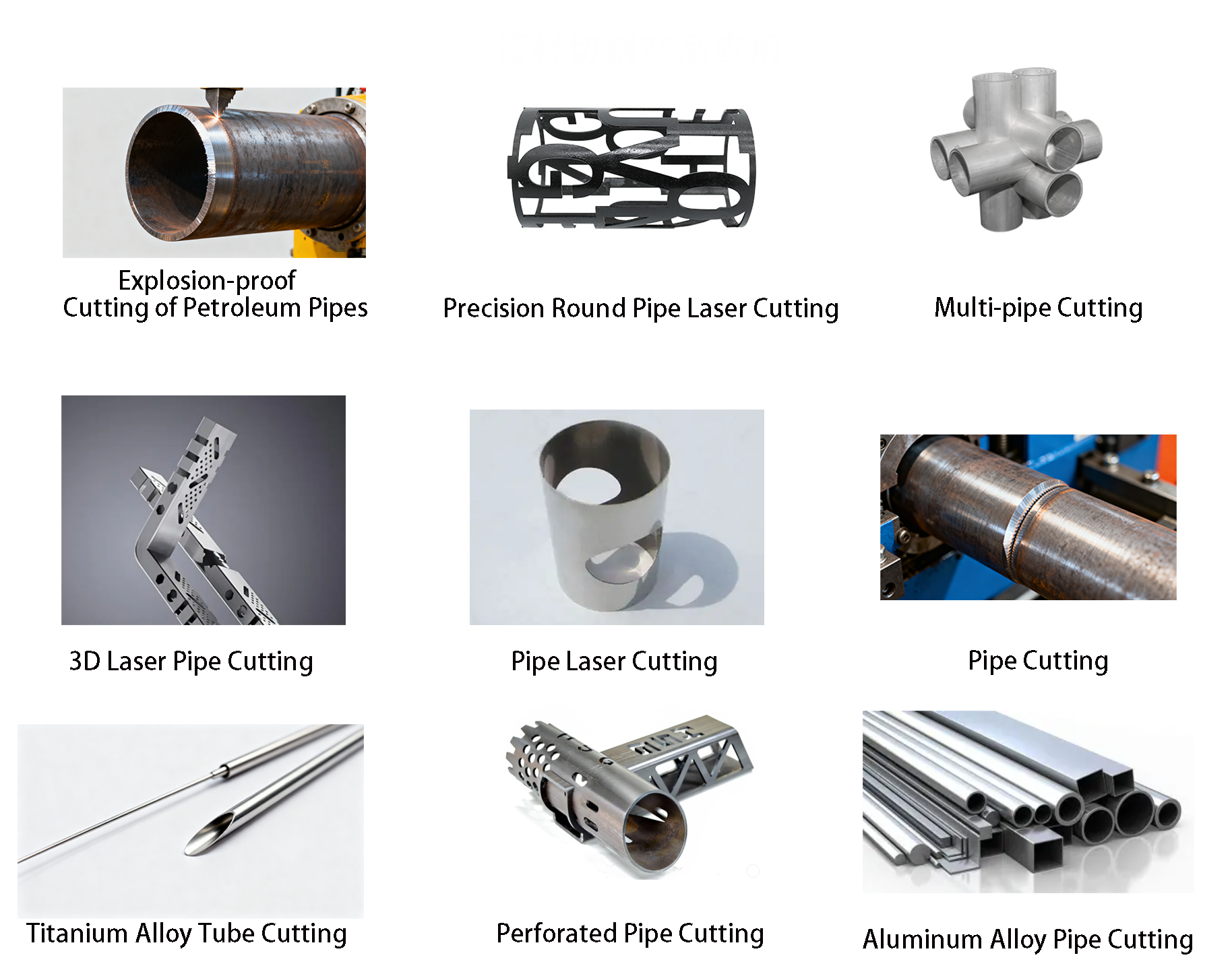

Stainless steel, carbon steel, cold-rolled sheets, and other metal tube and pipe laser cutting and drilling processing applications.
System Overview
The SuperFar Intelligent QLCut Tube intelligent metal tube cutting system supports 4-axis pulse/direction and EtherCAT bus control, and integrates an analog fully-closed-loop height control axis. This enables a single card to control all machine motion and height adjustment, delivering a high-precision, high-efficiency laser metal tube cutting solution.
System Architecture

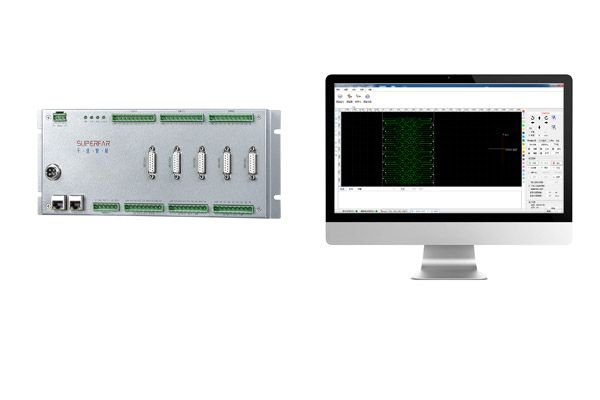

The QLCut Tube metal tube laser cutting software works with the QLC-520 four-axis motion controller, which features a built-in height regulator and SuperFar self-developed metal cutting head. This streamlined setup simplifies wiring and allows a single card to manage all machine motion functions.
Software
QLCut Tube metal tube cutting software
Technical Module | Innovation Design Highlights |
Integrated Design | Built-in height regulator enables a single card to control all machine motions. |
Fly Cutting | Path-optimized algorithm eliminates deceleration segments, increasing speed by 30% |
Smart nesting | Supports automatic nesting with ultra-high material utilization, reducing material costs. |
Algorithm Optimization | Jerk-controlled acceleration/deceleration algorithm ensures smooth motion, high efficiency and precision during cutting. |
Common-Edge Cutting | Supports automatic common-edge cutting to improve overall cutting efficiency. |
Micro-Joints | Enables mark-free micro-joints for convenient batch unloading. |
Multi-Stage Piercing | Supports multi-stage piercing to enhance processing efficiency for thick plates. |
Visual Positioning | Sub-pixel accuracy (±3μm) combined with thermal deformation compensation. |
Strong Anti-Interference | Supports individual encoder filtering for each axis, ensuring reliability in harsh environments. |
High Extensibility | Software supports custom I/O, PLC logic, and script automation for rapid implementation of automated production. |
Hardware
4 Axis motion contrl card QLC-520(CUT)
Category | Description |
Control Features | - Supports 4-axis pulse/direction and EtherCAT bus control - Excellent anti-interference capability with independent encoder filtering for each axis - Built-in height regulator control - a single card handles all machine motion functions - 1ms control cycle with filtered S-curve acceleration/deceleration, look-ahead, and corner optimization algorithms |
Computing Performance | - QLC-520cut platform equipped with high-performance digital processing unit. - Ultra-short servo cycle suitable for high-speed, high-precision scenarios |
Communication Capabilities | - EtherNET 1000M Ethernet communication - Independent operating system |
EtherCAT Interface | - Simplified wiring, exceptional scalability, and robust anti-interference performance |
Data Storage | - Large-capacity memory architecture supporting high-speed data throughput applications - Four-channel encoder input + four-axis pulse output -Two-channel ±10V DAC analog output. -24-output/27-input IO, support customized option |
Application | Stainless steel, carbon steel, cold-rolled sheets, galvanized sheets, copper materials, aluminum substrates, and other metal laser processing applications. |
